About this vehicle
Features
Description
Engine type V-twin, liquid cooled, 8-valve, OHC,
4-stroke
Displacement 976cc
Bore x stroke 91.0mm x 75.0mm
Compression ratio 11:1
Lubrication system Wet sump
Additional cooling Auto fan
Induction EFI
Starting/back-up Electric/none
Starting procedure Turn ignition key
Choke location N/A
Air filter:
Type Foam pre-filter and pleated paper filter
Access Tool-less, remove center seat and undo 2 clips
Transmission Dual-range CVT w/reverse
Reverse procedure Move range selector to “R”
Drive system Selectable 2WD/4WD w/front and rear
diff-lock
Final drives Shafts
DIMENSIONS/CAPACITIES/WEIGHTS
Fuel capacity 12.7 gal.
Wheelbase 91.5”
Overall length/width/height 131”/70”/77”
Ground clearance 12.5”
Dry weight 1830 lb

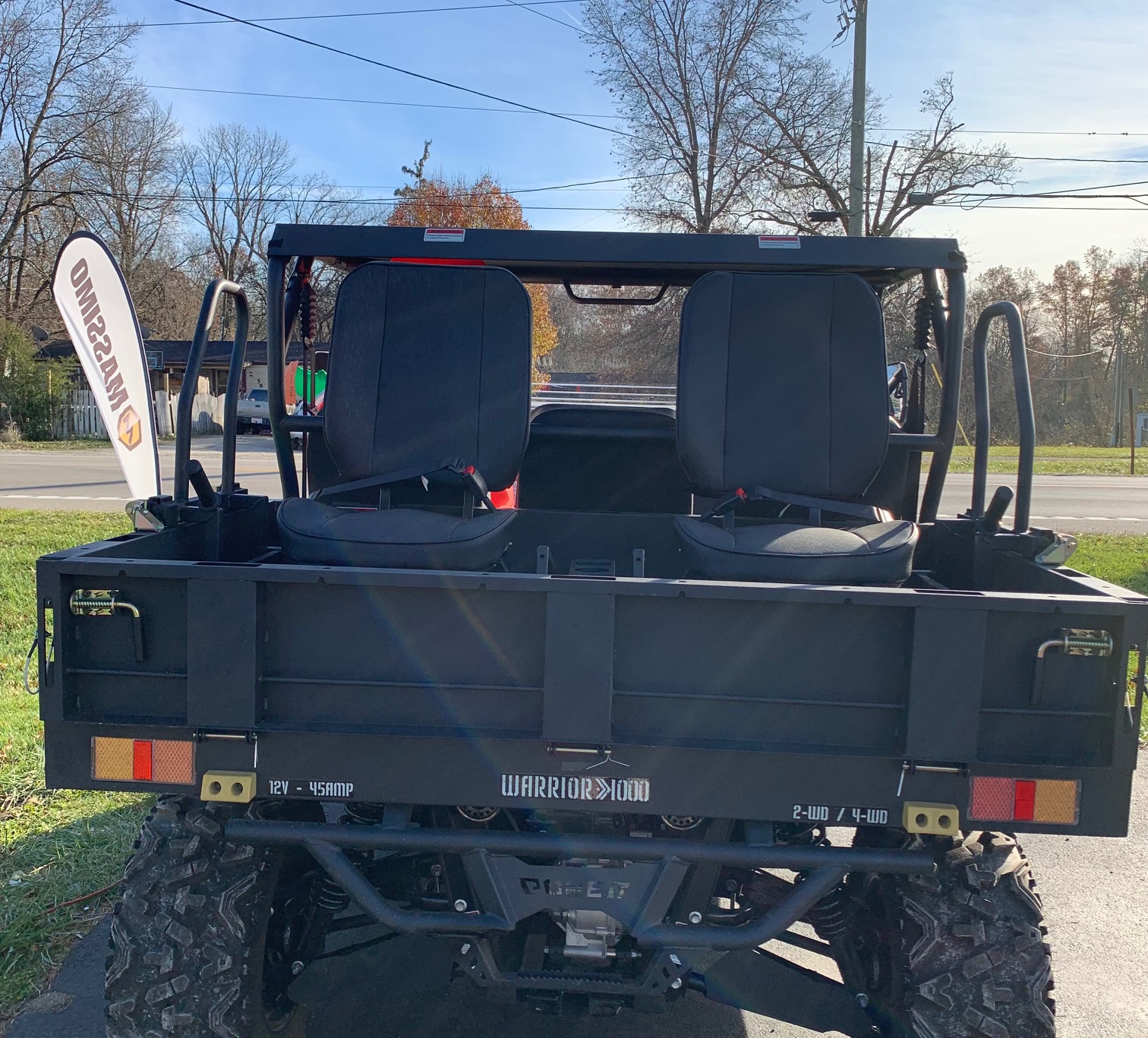

Bed weight limit 500 lb
Hitch 2” receiver
Towing limit 1,500 lb
ROLLING CHASSIS
Frame Steel round tube
Suspension/wheel travel:
Front Dual A-arms w/preload adjustable shocks/10”
Rear Dual A-arms w/preload adjustable shocks/10”
Brakes/actuation:
Front Hydraulic discs/left-side pedal
Rear Hydraulic discs/left-side pedal
Parking Lever on console
Tires:
Front 27×9-14
Rear 27×11-14
ELECTRICAL
DC outlet Console
Lighting:

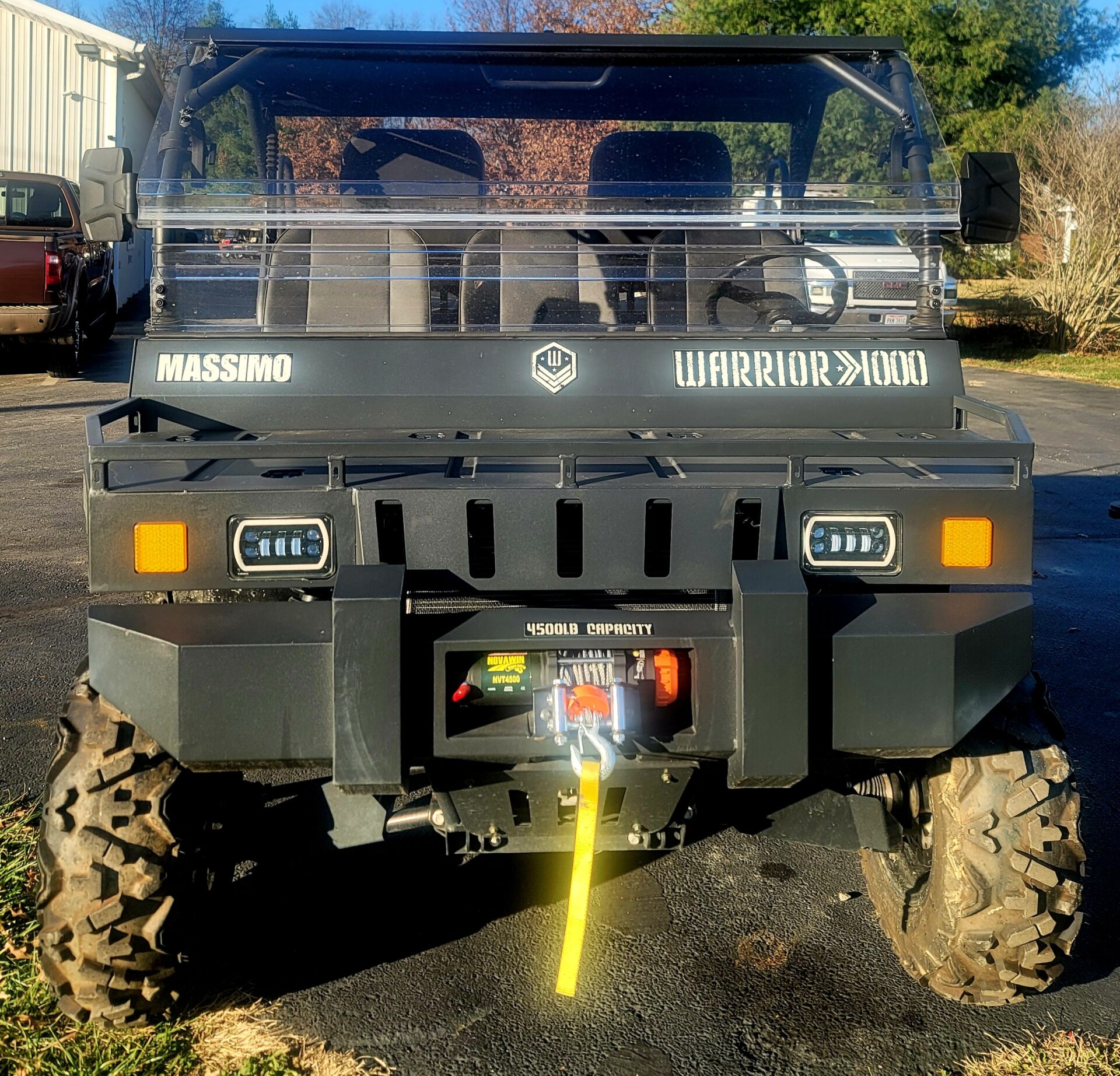

Front 2 35W LED headlights
Rear LED brake/tail light

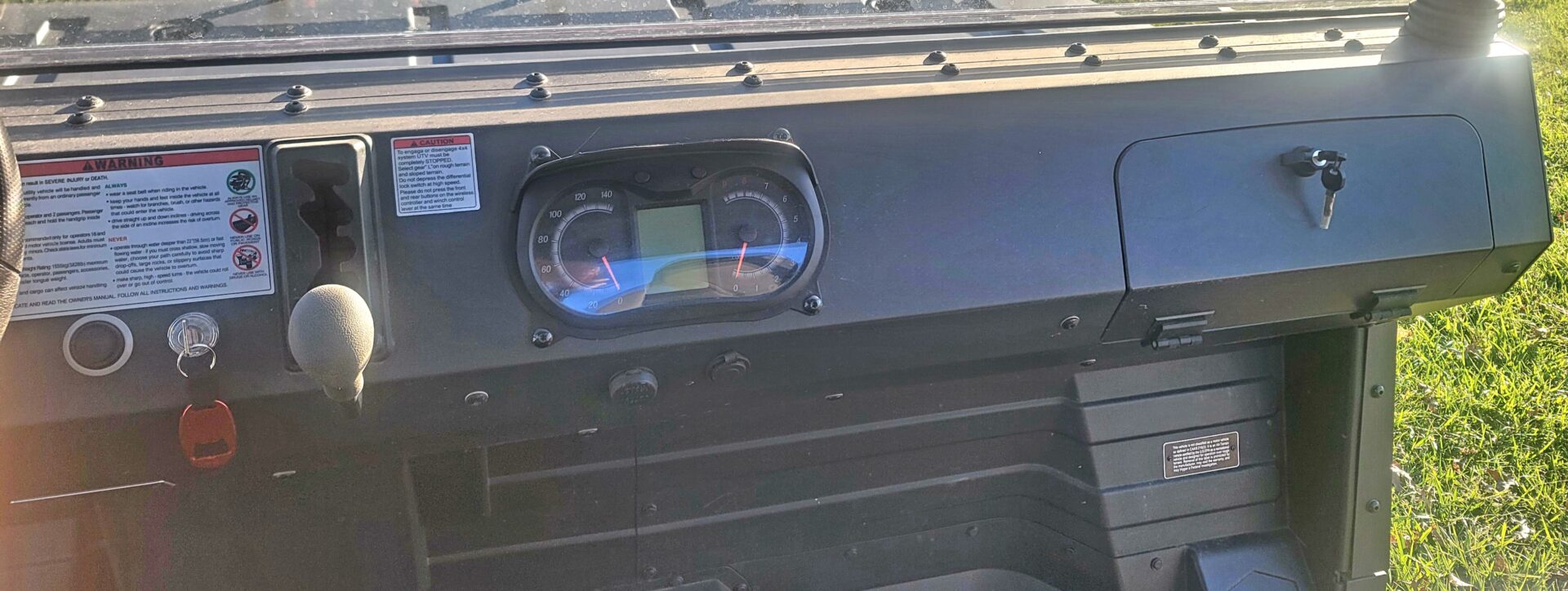

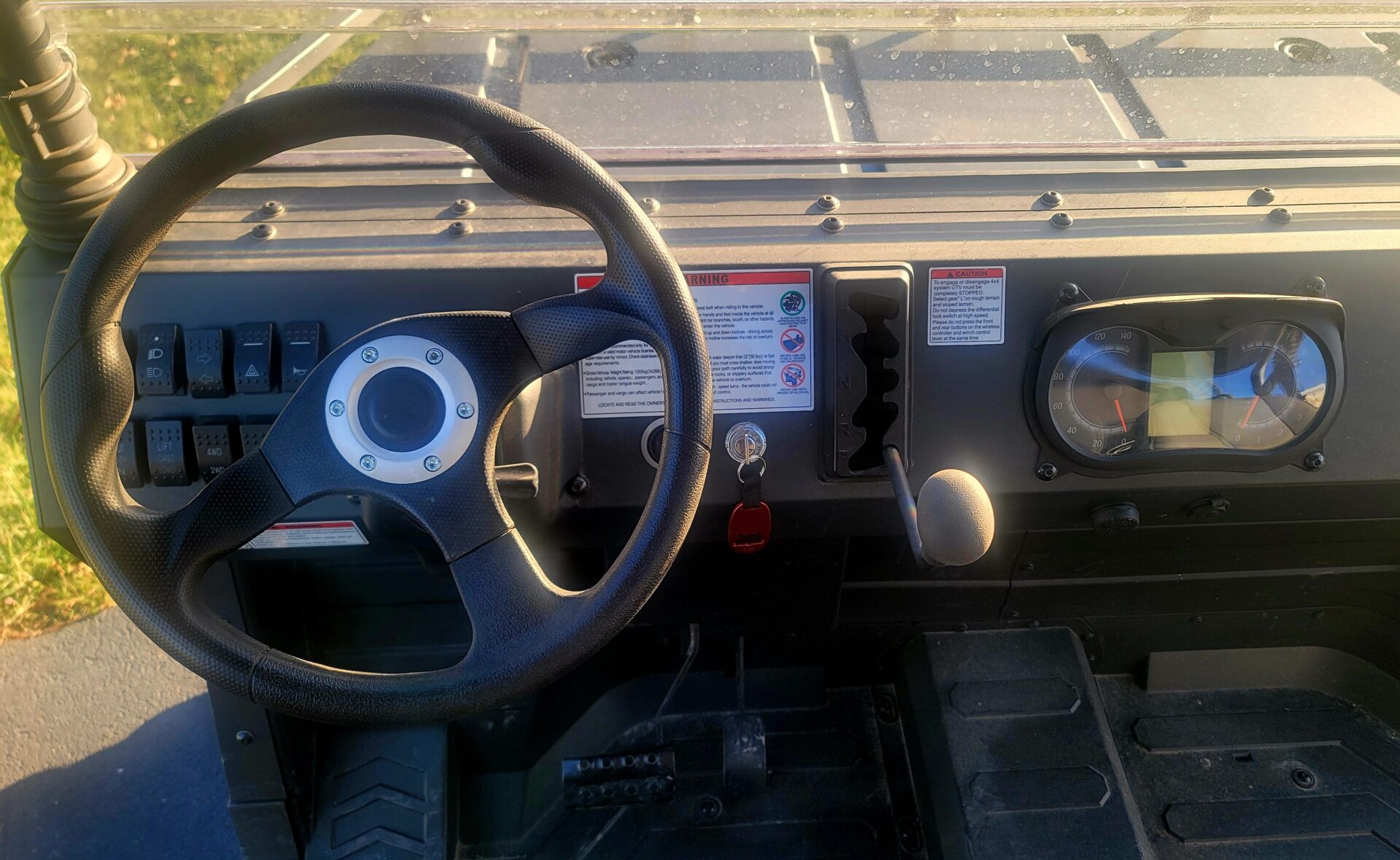

Instrumentation Analog & LCD digital multimeter
